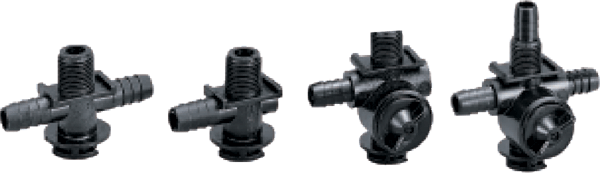

DELA-FIT "T" AND "L" HOSE CONNECTOR BODIES
These bodies feature a top-mounting clamp post and built-in guide for quick alignment on spray booms and eliination of nozzle body rotation. Combined with diaphragm check valves, these bodies provide instantaneous, drip-free shut off at the nozzle valve with minimum pressure loss. (Hose barb is right or left looking at valve with outlet down.)
Part
Number		 Size &
Hose ID

Dela-Fit
Hose
Connector
Bodies
With
DVC

 47428-1 1/2" L (R)
47430-1 1/2" L (L)
47426-1 1/2" T Use brass locknut P/N 04423-2 (11/16"-16 NS) to secure them to the boom.
47428-2 3/4" L (R)

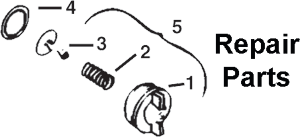

47430-2 3/4" L (L) Ref. Part Number Description
47426-2 3/4" T 1 45169 Spring Module
47432-1 1/2" Cross 2 45488 Spring

Dela-Fit
Hose
Connector
Bodies

 50079 3/8" L 3 45170 Pressure Pad
50081 3/8" T 4 36042 Viton Diaphragm
45160 1/2" L   46182 Teflon Protect.
45161 1/2" T 5 45168

Spring Module
Assy. (ref. 1-3)
45162 3/4" L
45263 3/4" T
DELA-FITŪ NOZZLE CAPS
Nozzle Caps Part Numbers Nozzle Type Tip Bulk
Part #
Stnd. Thread Nozzle Caps
The self-aligning feature automatically aligns the flat fan tips along the spray boom. Each nozzle cap is slightly askew so the spray patterns will not impinge. Made of Delavan Thermoplastic.

45192 w/out seal
45173-1 with EPDM Seal
45173-2 with Viton Seal

RF Raindrop flat fan

50352
  50388


LFR Extended Range
Flat Fan

 48984
50044
  50427
50403
Dura Jet LF Flat Fan 50356

Universal Snap-On,
Variable Adjustment
The universal quick attaching cap allows you to position the tip for maximum pattern alignment and performance. Made of Delavan Thermoplastic.

 45193 w/out Seal
45174-1 With EPDM Seal
45174-2 With Viton Seal		 D Flood 29530
DC Disc 34553
DC Core 18664
HB Cone 33172
HC Cone 33447
CE Solid 31224
RE Even 50626
LE Even 31614
2 LF 33616
LX 33047
1/2 NPTF Adapter Cap for RA Raindrop and WRW WhirlRain Nozzles
Directly mount right-angle nozzles with 1/4 NPTM inlets with this adapter cap on Dela-Fit bodies. Made of Delavan Thermoplastic.

48863 w/out Seal
50023-1 With WPDM Seal
45174-2 with Viton Seal

RA Raindrop
WRW Hollow Cone
45o to 90o nozzle
position is
recommended for
these nozzles

 35654
35309


45o Elbow Cap Adapter
It sets all tips used with it at a 45o angle. Made of Delavan Thermoplastic.



45194 w/out Seal
45175-1 with 2 EPDM Seals
45175-2 with 2 Viton Seals

RD Raindrop Cap
With Disc/Core
45o to 90o Nozzle
position is
recommended for
this nozzle

33974






EPDM Seal, Standard - Max. Pressure: 70 psig (4.5 bars)
Viton Seal, Optional - Max. Pressure: 125 psig (9 bars)

45172-2
45172-1



Nozzle Blank, Plated Steel

46300

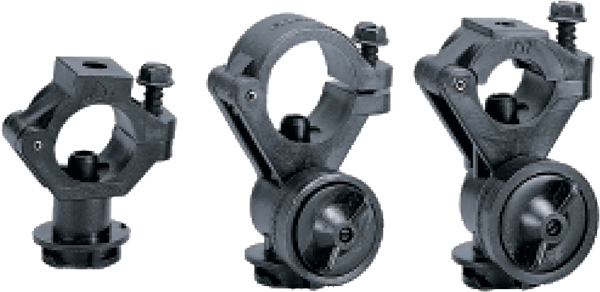

DELA-FIT EYELET BODIES
Dela-Fit eyelet bodies feature a single screw eyelet clamp, hinged for easy placement, and can be modified to fit either 1/2" or 3/4" boom pipe. If you change your boom pipe diameter, Dela-Fit changes with you. All eyelet bridge pieces can be replaced with a larger or smaller size. Standard nozzles strainers fit all Dela-Fit bodies. All Dela-Fit bodies are made of chemical-resistant nylon.

Available with diaphragm check valves as part of the body. This will provide instantaneous, drip-free shutoff at the nozzle with minimum pressure loss.

MAX. RECOMMENDED PRESSURE: 100 psig (7 bars)
MAX. RECOMMENDED TEMPERATURE: 120o F (50o C)

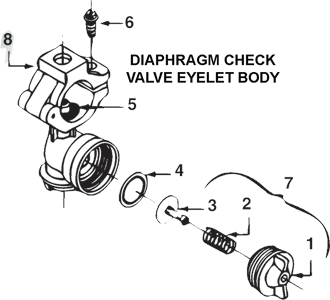

Ref.
Number		 Part
Number		 Description Part
Number		 Material Pipe
Size		 Tubing
Size		 Drill Size
For Boom
1 45169 Spring Module 1/2" & 3/4"
Eyelet Bod		 45150 Nylon 1/2" 3/4" OD 7/16"
2 45488 Spring 45151 Nylon 3/4" 1" OD 7/16"
3 45170 Pressure Pad 1/2", 3/4" & 1" Eyelet
Diaphragm
Check Valve
Bodies		 45147 Nylon 1/2" 3/4" OD 7/16"
4 47598
46182		 Viton Diaphragm
Teflon Protection (optional)		 45148 Nylon 3/4" 1" OD 7/16"
45858 Nylon 1" 1-1/4" OD 7/16"
5 04010-2 Stem Seal
6 45202 Screw
7 45168 Spring Module Assembly (Ref1-3)
8 45165
45165
45925		 1/2" Bridge Piece
3/4 Bridge Piece
1" Bridge Piece

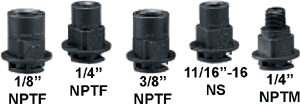

DELA-FITŪ NOZZLE BODY ADAPTERS
CONVERT THREADED OUTLET AERIAL AND GROUND
BOOMS TO DELA-FITŪ
Dela-Fit 1/8", 1/4" & 3/8" NPT (F), Nozzle Body Adapter P/N 45860
Allows aerial applicators to use lightweight Dela-Fit nylon diaphragm check
valve modules. Also allows easy conversion  to Dela-Fit on any existing threaded outlet ground spray boom. Adapters and check valves won't add extra weight, and you can change nozzles quickly.

Dela-Fit 1/4" NPT (M) Nozzle Body Adapter P/N 45859
Convert existing threaded outlet wet boom with 1/4" NPT (F) outlets to easy, quick-attach Dela-Fit.		 For proper installation:
1. Install one #04423-2 nut in place of the standard nozzle body nut.
2. Install second #04423-2 nut on nozzle body (do not tighten).
3. Drop the #34036 spacer into the 11/16"-16NS Dela-Fit adapter (#45861).
4. Tighten adapter until spacer is in contact with nozzle body.
5. Important. Continue to tighten the adapter until the flats align with the barbs on the T or L.
6. While holding the adapter in position, turn the last locknut installed until it contacts the adapter and locks it snugly in place. Can be used with most short-threaded "T"s or "L"s.
Dela-Fit 11/16"-16NS Nozzle Body Adapter P/N 45861
Convert existing 11/16"-16NS standard thread nozzle bodies to quick and easy Dela-Fit. Use with locknut (p/s 04423-2) and spacer (p/n 34026) to facilitate adapter installation.
Standard-Thread-To-Dela-Fit Boom Conversion Kit
Converts existing standard thread bodies to Dela-Fit nozzle assemblies for quick and easy tip changes. Everything you need in one economical package.

P/N 46019-1

 P/N 46019-2 P/N 46019-3 Part
Number		 Description Quantity/-No.
8 row 10 row 12 row -1 -2 -3
45861 11/16"-16NS female adapt. 17 21 25
45173-1 LF self-aligning cap w/ seal 17 21 25
45174-1 Univ. snap-on cap w/seal 17 21 25
34036 Spacer 17 21 25
04423-2 Locknut 17 21 25

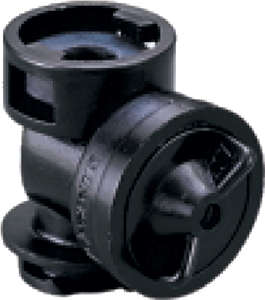

DELA-FITŪ DIAPHRAGM CHECK VALVE MODULE
Dela-Fit Diaphragm check valve bodies and modules feature instantaneous, drip free shut-off at the nozzle with minimum pressure loss. Use with Dela-Fit "T" & "L" Hose Connector Bodies or Dela-Fit eyelet bodies.
Diaphragm Check Valve Module
Part Number Module Matl. Seal Material Seal P/N
45149-1 Nylon Viton 45172-1
45149-2 Nylon EPDM (std) 45172-2

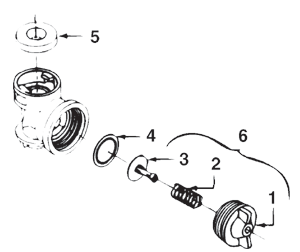

Exploded View Diaphragm Check Valve Module
Ref.
Number		 Part
Number		 Description
1 45169 Spring Module
2 45488 Spring
3 45170 Pressure Pad
4 47598
46182		 Viton Diaphragm
Teflon Protection (optional)
5 50024-1
50024-2 		Seal (EPDM-std.)
Seal (Viton-optional)

MAX RECOMMENDED PRESSURE:
100 PSIG (7 BARS)
MAX. RECOMMENDED TEMP:
120o f (50o C)
6 45168 Spring Module Assembly (Ref. 1-3)
