USE WITH STANDARD THREAD OR DELA-FIT/QUICK CHANGE BODIES AND CAPS Part Numbers Stainless
Mesh		 Body
Material
Bulk Delapak

Color Coded
Flanged
Strainer

 28175-1 50 303 Stainless

MAX RECOMMENDED PRESSURE:
All metals :500 PSIG (34.5 Bars)
Nylon: 100 PSIG (7 bars)
Max Recommended Temp: 120o F

 28175-2 100 303 Stainless
28175-3 00073-787 50 Brass
28175-4 100 Brass

  150 Brass
28175-7 200 Brass
28175-10 200 303 Stainless
  24 303 Stainless
  24 Brass
26642-1 00073-790 50 Glass-filled Poly
26642-2   100 Glass-filled Poly
  00073-787 150 Glass-filled Poly
Color-Coded Flanged Strainer
All strainers have stainless steel screens....50, 100, 150 and 200 mesh.



 26642-4   200 Glass-filled Poly
  24 Glass-filled Poly
33617-1 50 Long Brass Strain
  100 Long Brass Strain
33617-3 24 Long Brass Strain

Replacement
Screens

 01181-1 00073-797 100
01181-2 00073-796 50
01181-4 200

01181-6 24
Part Numbers Stainless
Mesh		 Slot Width
Bulk

Slotted
Strainer

 19410-1   50 0.14 inches
SLOTTED STRAINER
Primarily for use with type DC disc core nozzles, but can be used with others if slot size is properly selected. Made with glass-filled polypropylene.		 19410-2   25 0.22 inches
19410-3   16 0.33 inches



Part
Number		 Stainless
Mesh		 Body
Material

Cup
Strainer

 50226-1 50 303 Stainless
50226-2 100 303 Stainless
CUP STRAINER
For strainer mesh recommendation, see nozzle tip number. If no mesh is listed, no strainer is needed except for RD Raindrop and DC nozzle tips. Strainer recommendations for them are listed separately.




Part Numbers

Spring
Press.

Stainless
Mesh

Body
Material

Bulk

Delapak

Ball
Check
Strainer

 35288-1   5 psi 50 Brass
35288-2   5 psi 100 Brass
35288-6 5 psi 24 Brass

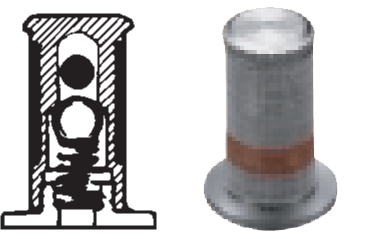

Ball Check Strainer
Use to stop dripping at the nozzle		 35288-7 00073-1065 5 psi 50 303 S Steel
35288-8 00073-1066 5 psi 100 303 S Steel
  5 psi 24 303 S Steel
  5 psi 200 303 S Steel
50136-1   5 psi 50 Nylon
50136-2   5 psi 100 Nylon
49420-1 10 psi 50 Brass
49420-2 10 psi 100 Brass
  10 psi 200 Brass
  10 psi 24 Brass
